A Few Thoughts on the Simplify3D Interface & Multi-process 3D Printing

I’ve recently switched over to using Simplify3D as my default slicer for 3D printing. Its controls are manual support abilities allow for greater control and have been a pleasure to use. It even has the ability to specify multiple print settings within a single print, which can be quite useful. The feature however is somewhat obscure and labor intensive to use. Here’s some thoughts on how this might be improved upon with a new UI:

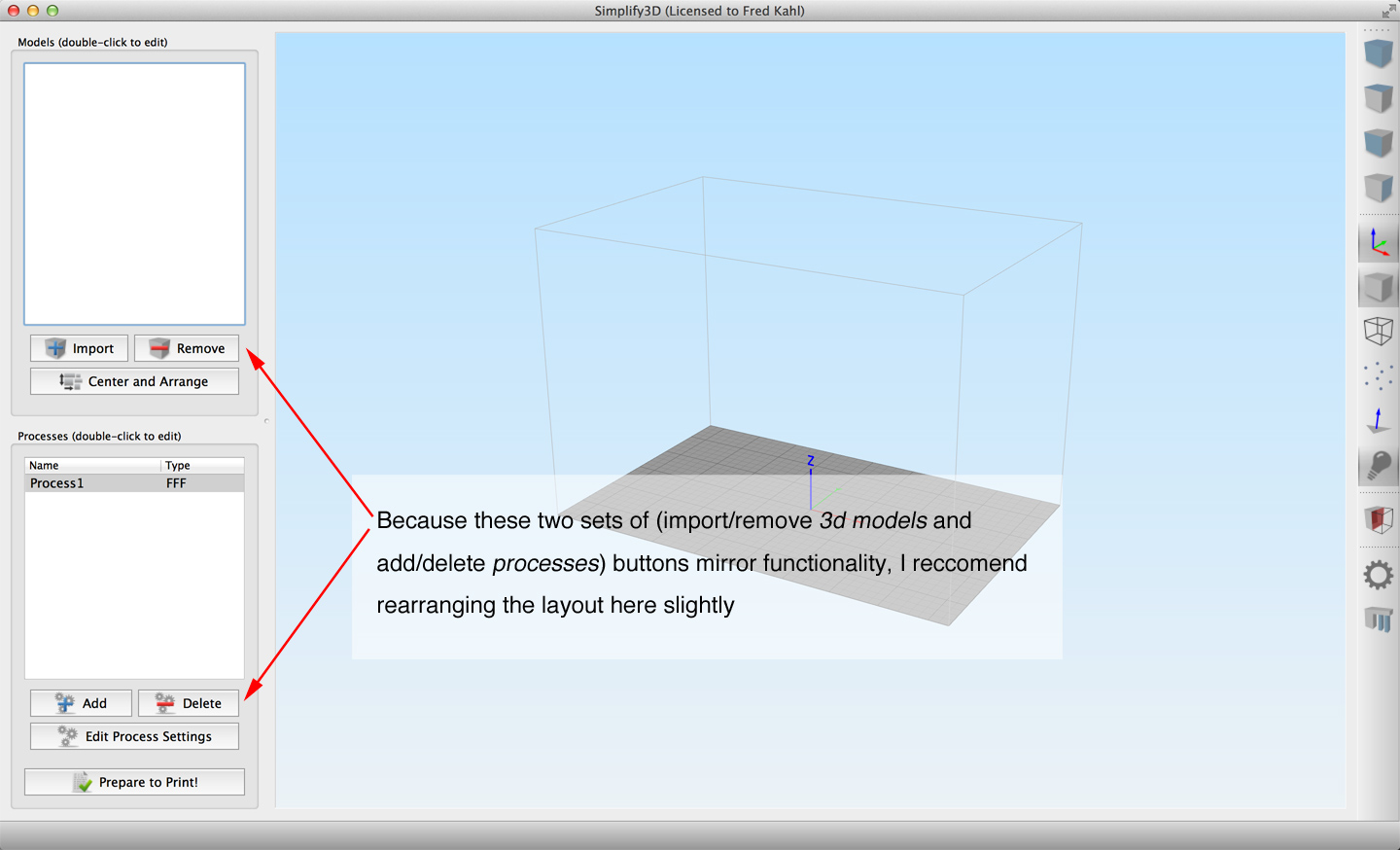

Note: several times I have deleted a process when I meant to change the model, and this is why I am suggesting this change

Note: several times I have deleted a process when I meant to change the model, and this is why I am suggesting this change

02

This solution better enforces the “story of the screen”, which is to start at the upper left

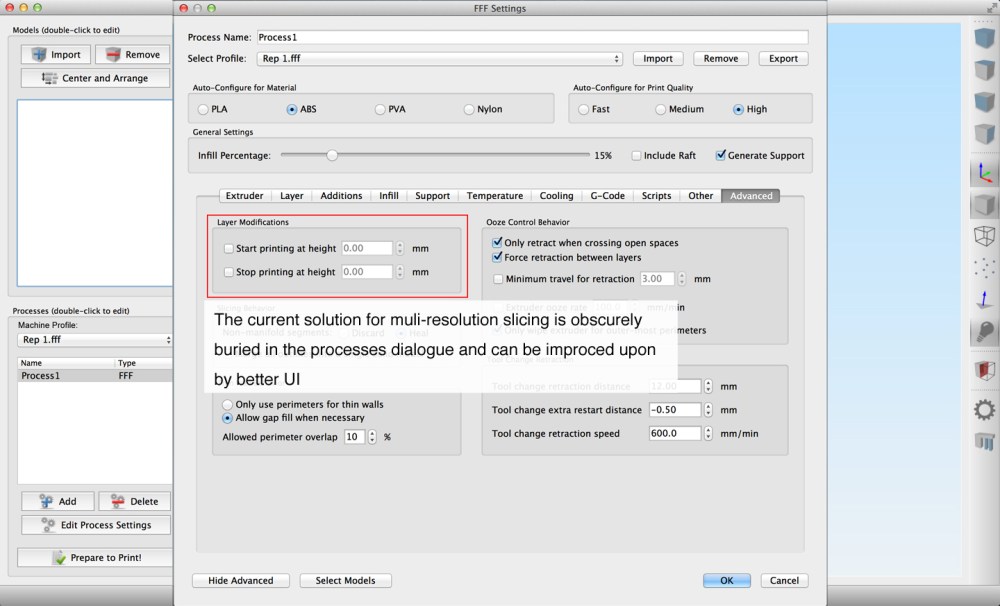

03

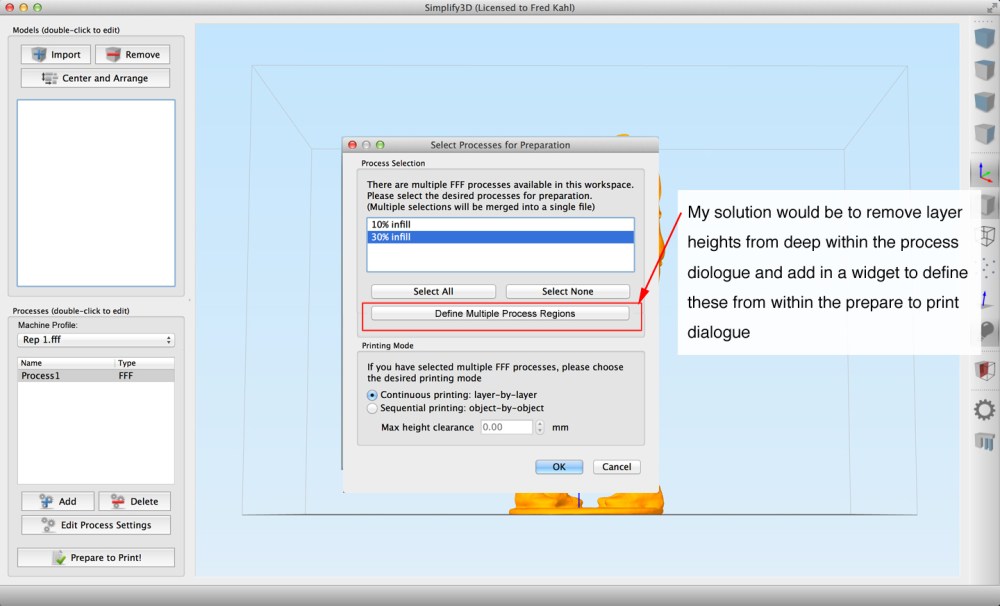

04

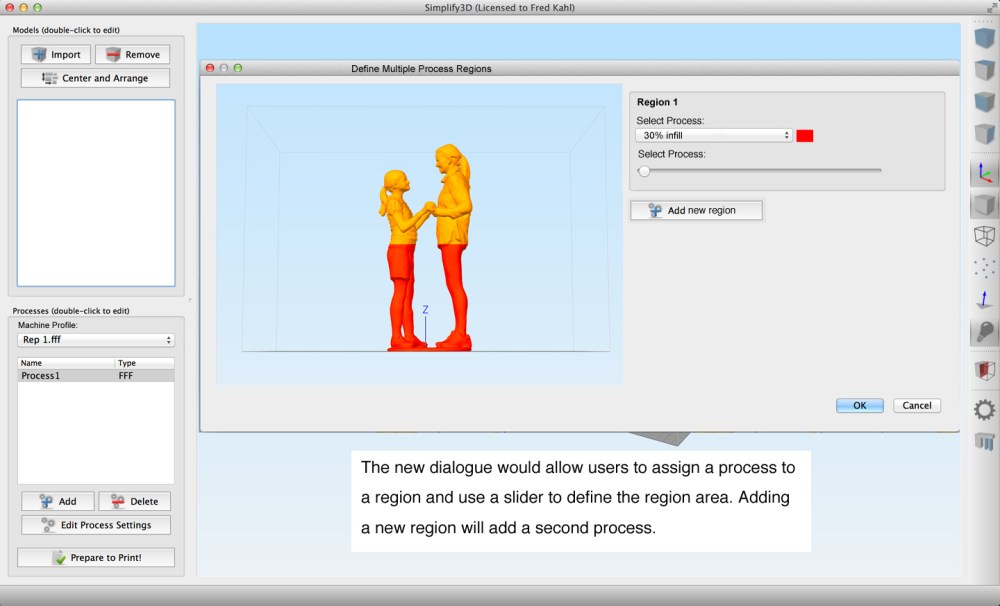

05

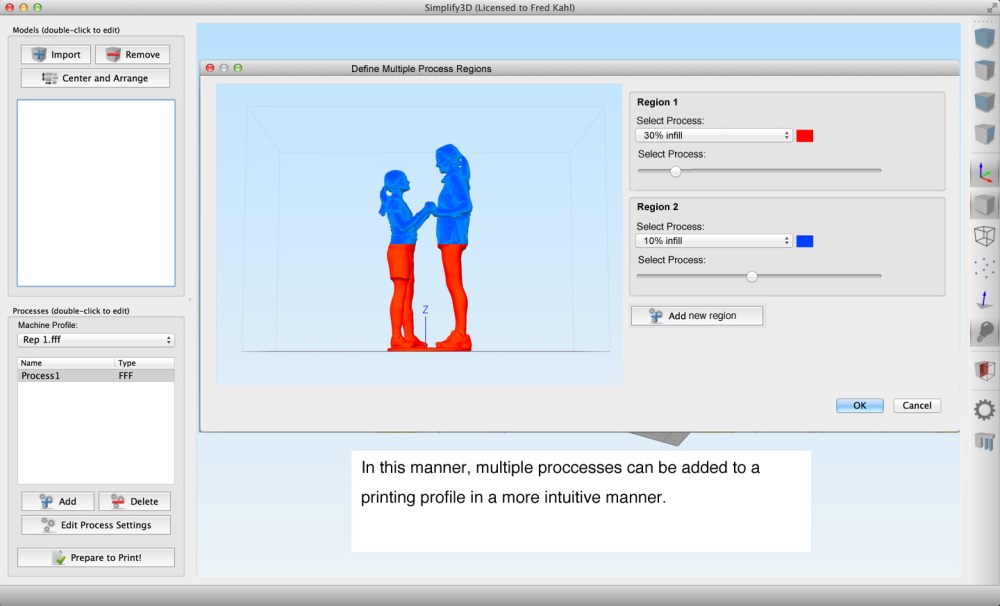

06
