3D Scanning at the Brooklyn Museum

I was recently at the Brooklyn Museum for the opening of the exhibit Coney Island: Visions of an American Dreamland, 1861–2008. Its a great exhibit and I encourage everyone to go check it out! While there, I took the time to take pictures of several objects to use to generate 3D models of a few Coney Island Artifacts, as well as some beautiful architectural details.

This process of photogrammetry  or “physical photography” as I have come to call it involves photographing an object many times from all angles, taking care to ensure that each image is in full focus. Once photographed, software analyzes the image to find the same point in multiple images and generates a 3D model of where in space each camera was. From there, a point cloud and 3D mesh can be generated. Its a laborious process but its a very accurate way of generating 3D models of still objects like sculpture.

Here’s the processed scans:

Screen Shot 2015-12-04 at 6.45.31 PM

Spook-A-Rama cyclops head from Deno’s Wonder Wheel Park (Courtesy of the Coney Island History Project)

Screen Shot 2015-12-04 at 6.44.25 PM

Pegasus Statues from the Coney Island pumping station. (read about these here)

Screen Shot 2015-12-04 at 6.15.49 PM

Bacchus Keystone from the Brooklyn Museum Sculpture Garden. This scan came out amazing, with incredible detail to it!

Screen Shot 2015-12-04 at 6.34.57 PM

Another Great Keystone!

Screen Shot 2015-12-02 at 7.10.08 PM

Telamon (Male Caryatid) #1

Screen Shot 2015-12-02 at 5.59.32 PM

Telamon #2

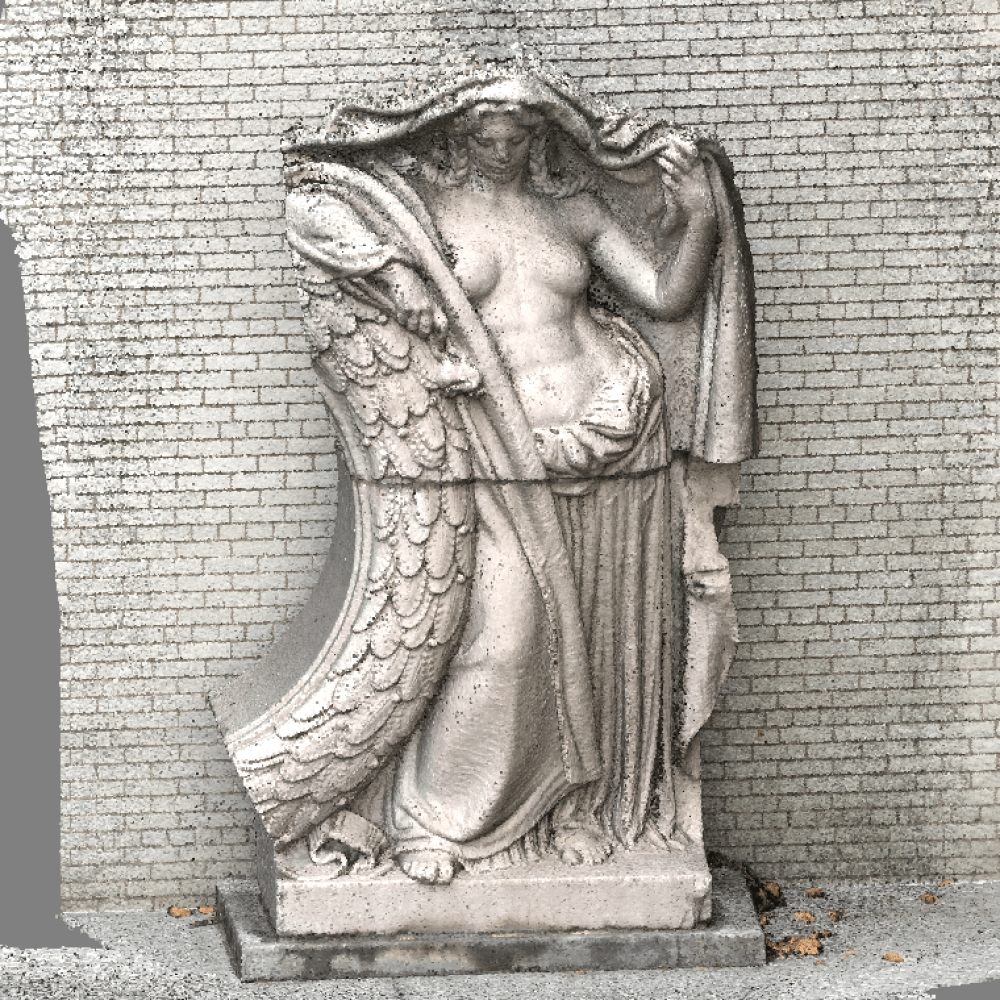

Screen Shot 2015-12-04 at 8.14.15 PM

Architectural Detail from the Brooklyn Museum Sculpture Gardens

Advertisements

One thought on “3D Scanning at the Brooklyn Museum

  1. A 3D model is a step in the right direction of bringing the Pegasus statues back to Coney. Hopefully the Pumping Station will be made an official NYC landmark soon and the Pegasus will return to their spot.
